Safer than handling liquid oxygen

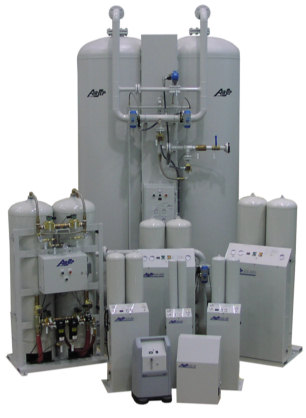

Standard Generators:
Fully automatic, they require no specialized operating personnel. Simply connect an air compressor or shop air supply to the generator and your oxygen distribution system to the generator's oxygen receiver. Then connect the power cord to a grounded electrical outlet, turn the unit on, and set your oxygen delivery pressure. A simple on/off switch supplies oxygen whenever you need it! AS-N and larger AirSep oxygen systems come standard with industry leading Allen Bradley Touch Screen control panels for ease of operation and dependability.
Self-Contained Generators:
AirSep manufacturer offers completely self-contained oxygen generators. Equipped with air compressors, these generators require no special installation. Simply connect the oxygen outlet to your oxygen distribution system and the power cord to a grounded electrical outlet. Turn the unit on and set your oxygen delivery pressure. The AS-12 is ideal for use where oxygen at relatively low pressures are needed. It supplies sufficient oxygen for ozone generation, jewelry manufacturing, glass work, and various brazing applications. In comparison, the RELIANT is ideal for use in applications that require oxygen pressures of 12-50 psig (85-345 kPa).*
Skid-mounted, turnkey packaged oxygen systems:
Skid-mounted, turnkey packaged oxygen systems are ideal for locations where a compressed air supply is limited or unavailable.
AirSep PSA/VPSA Tonnage Oxygen Systems
PSA or VPSA Systems that generate more then 5 tonne/day of oxygen and can not be shipped fully assembled are classified as a tonnage system*
* 5 tonne/day or less capacity systems are shipped fully assembled and are part of AirSep’s standard product line.
Need help with specifications? See the Oxygen Unit Conversion Calculator
Self Contained Oxygen Generator Models:
|
AirSep
Model A
|
O2 Output B
SCFH Max.
|
O2 Output
Nm3/H
|
O2 Output
Cyl. Equiv.*
|
O2 Output
Del. Pres.
|
Air Req'd
SCFM **
|
Air Req'd
H.P.***
|
# of HokeDTips
Supported
|
|
12 |
0.28 |
1.5 |
9 psig |
Included |
Included |
3 |
|
17 |
0.44 |
2.1 |
20 psig |
Included |
Included |
7 |
AS-12 |
12 |
0.28 |
1.5 |
9 psig |
Included |
Included |
3 |
|
12 |
0.28 |
1.5 |
15 psig |
Included |
Included |
3 |
|
24 |
0.63 |
3.5 |
18 psig |
Included |
Included |
9 |
RELIANT |
15 |
0.42 |
2 |
50 psig |
Included |
Included |
6 |
|
15 |
|
2 |
50 psig |
Included |
Included |
6 |
AirSep Standard Series Oxygen Generators:
| Specifications |
|
|
|
|
|
|
| |
|
|
|
|
|
|
Generator
Series |
Oxygen Output |
Generator Characteristics |
Flow Range
(SCF/hr) |
Maximum
Product Pressure |
Product Purity |
Dimensions
(l x w x h) |
Weight |
|
Min |
Max |
psig |
|
in. |
lbs. |
| AS-A |
10 |
25 |
65 |
93% Nominal |
13 x 11 x 57 |
140 |
| AS-B |
30 |
55 |
65 |
93% Nominal |
17 x 15 x 58 |
246 |
| AS-D |
65 |
90 |
65 |
93% Nominal |
16 x 20 x 60 |
361 |
| AS-E |
95 |
195 |
65 |
93% Nominal |
33 x 26 x 68 |
770 |
| AS-G |
200 |
320 |
65 |
93% Nominal |
36 x 28 x 75 |
1,030 |
| AS-J |
400 |
600 |
65 |
93% Nominal |
34 x 42 x 79 |
1,660 |
| AS-K |
600 |
950 |
65 |
93% Nominal |
58 x 38 x 91 |
2,690 |
| AS-L |
1000 |
1400 |
65 |
93% Nominal |
62 x 40 x 100 |
3,215 |
| AS-N |
1450 |
1900 |
65 |
93% Nominal |
82 x 59 x 115 |
6,419 |
| AS-Q |
2000 |
2700 |
65 |
93% Nominal |
82 x 60 x 140 |
8,820 |
| AS-R |
2800 |
3700 |
65 |
93% Nominal |
87 x 72 x 157 |
13,700 |
| AS-Z |
3800 |
5000 |
65 |
93% Nominal |
87 x 72 x 197 |
16,100 |
|
|
|
|
|
|
|
| All generators are available in 120VAC or 220 VAC. |
|
|
| All generators produce oxygen with a dew point of -100°F(-73°C). |
|
| SCF (Standard cubic foot) gas measured at 1 atmosphere, 70°F. |
|
We offer a wide variety of PSA oxygen systems and larger equipment plants for virtually any oxygen generation need or application - from 4 to 70,000 Standard Cubic Feet per Hour (SCFH). Please inquire at info@o3ozone.com or call (330) 497-6900 if you do not see the model or output you are looking for.
| * |
Based on "K" size cylinder (244 cf) approximately 40 hour week operating time. |
| ** |
Air required @ 90 psig. |
| *** |
Air Compressor Horse Power listed are approximate ratings. |
| A |
-Available in 120 VAC/60 Hz or 220 VAC/50 Hz. (with the exception of the DAS12A - 120 Volt only)
-A 60 gallon oxygen receiver weighing 145 lb (65.8 kg) is shipped separately with the AS-20 thru AS-160.
-A 120 gallon oxygen receiver weighing 275 lb (124.7 kg) is shipped separately with the AS-250 thru AS-450. |
| B |
All models generate up to 95% pure oxygen with a dew point of -100 ºF (-73 ºC). |
| C |
SCF (standard cubic foot) gas measured at 1 atmosphere and 70 ºF. Nm3 (normal cubic meter) gas measured at 1 atmosphere and 0 ºC. |
| D |
Hoke Torches & Tips are for precision metal melting as well as soldering, brazing and welding. |
CLICK HERE! to Learn How PSA Works - "Pressure Swing Adsorption Oxygen"
AirSep PSA Oxygen Systems & Characteristics:
Standard and Custom Designs - Systems meet customers' application requirements.
Quality-Assured - Fabricated in accordance with all relevant codes (eg. ASME, ANSI, CSA, CRN, NEMA, NYCFD).
Engineering Excellence - AirSep engineers instrumental in early PSA oxygen research. AirSep leads current PSA technology development and refinement. Over 50 patents held worldwide.
Energy-Efficient - World's most energy-efficient two-bed PSA oxygen process. Generates oxygen on site at less than half the cost of purchased oxygen.
Safe - Low pressure operation. Eliminates hazardous handling and storage of purchased liquid or high pressure oxygen.
Reliable - Built for years of continuous, trouble-free operation. Eliminates irregular deliveries of purchased oxygen.
Fully Automatic - Microprocessor-controlled for unattended operation.
Practically Maintenance-Free - Regular maintenance is limited to normal air compressor upkeep and periodic replacement of oxygen generator filter element(s).
