AirSep TOPAZ, TOPAZ+, TOPAZ ULTRA AS 12, AS-12 Oxygen Generator

AIRSEP TOPAZ, TOPAZ+, TOPAZ ULTRA,
AS-12, AS 12 Oxygen Generator:

AirSep Model ^A	O₂ Output^B SCFH	O₂ Output Nm³/H	O₂ Output Cyl. Equiv.*	O₂ Output Del. Pres.	Air Req'd SCFM **	Air Req'd H.P.***	# of Hoke^DTips Supported
AS-12	10	0.31	1.5	0-9 psig	Included	Included	3

Specifications:

Product Characteristics

Standard Product Flow: 12 SCF/hr1 (0.31 Nm3/hr2)
Standard Product Pressure: 0–9 psig (0–62.1 kPa)
Minimum Product Purity: 90% Product Dew Point: -100°F (-73°C)
Ambient Operating Conditions Locate the oxygen generator in a well-ventilated area that is protected from weather elements and remains between 40°F (4°C) and 112°F (44°C)
Control Power Requirements 120 V ~ ±10%, 50/60 Hz, Single Phase, 4 A 220 V ~ ±10%, 50/60 Hz, Single Phase, 2 A Typical
Power Consumption (at 90% purity): 350 W
Physical Characteristics Dimensions (W x D x H): 17.25 x 10 x 26.75 in. (43.8 x 25 x 68 cm)
Weight: 55 lb. (25 kg)
Weight Less Enclosure: 46 lb. (20 kg)
Physical Connections
Product Gas Outlet: 1/4” NPT/B size oxygen adapter
Sound Level: 55 dba @ 1 meter, open field conditions
Certifications and Approvals: NRTL certified compliance to UL 3101.1, CSA, CE Compliant
Warranty: 1 Year Parts and Factory Labor*

*An unprotected or inadequately ventilated environment or improper control power may cause damage to the oxygen generator not covered under warranty. AirSep Corporation continually improves its products and reserves the right to change specifications or design without notice.

Oxygen Generators manufactured by the Commercial Products Division of AirSep Corporation are sold for use in industrial applications only. Contact AirSep Corporation or an authorized AirSep representative before purchasing a unit for any medical application.

Call 330-497-6900 for TOPAZ+ (TOPAZ PLUS) HIGH PRESSURE Oxygen Generators:

TOPAZ+ (PLUS) 17 SCFH

Topaz Ultra 21 SCFH

Need help with specifications? See the Oxygen Unit Conversion Calculator

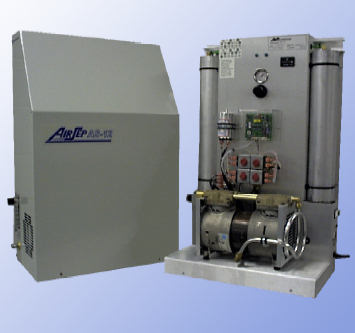

TOPAZ AS-12 MODELS:

AS013-5 AS-12 AirSep TOPAZ Oxygen Generator 120 VAC 60 Hz (standard 120 Volt AC version). Complete with Compressor and Enclosure. Includes Compressor Assembly Accessory Kit with Instruction Manual, Gross Particle Filter, and Barbed Hose Connector.
$1665.00 330-497-6900

AS013-1 AS-12 AirSep TOPAZ Oxygen Generator 120 VAC 60 Hz - less Enclosure. Complete with Compressor. Includes Compressor Assembly Accessory Kit with Instruction Manual, Gross Particle Filter, and Barbed Hose Connector.
$1539.00

AS013-6 AS-12 AirSep TOPAZ Oxygen Generator 220 VAC 50 Hz (220 Volt AC 50 Hz. version). Complete with Compressor and Enclosure. Includes Compressor Assembly Accessory Kit with Instruction Manual, Gross Particle Filter, and Barbed Hose Connector.
$1815.30

AS013-2 AS-12 AirSep TOPAZ Oxygen Generator 220 VAC 50 Hz (220 Volt AC 50 Hz. version)- less Enclosure. Complete with Compressor. Includes Compressor Assembly Accessory Kit with Instruction Manual, Gross Particle Filter, and Barbed Hose Connector.
$1687.50

info@o3ozone.com

Typical TOPAZ, AS-12 Oxygen Generator Applications:

EWOT Exercise With Oxygen

Fish Farming, Fish Hatchery

Environmental Remediation

Waste/Water Treatment

Aquaculture

Pulp & Paper

Based on "K" size cylinder (244 cf) approximately 40 hour week operating time.

Air required @ 90 psig.

***

Air Compressor Horse Power listed are approximate ratings.

-Available in 120 VAC/60 Hz or 220 VAC/50 Hz. (with the exception of the DAS12A - 120 Volt only)
-A 60 gallon oxygen receiver weighing 145 lb (65.8 kg) is shipped separately with the AS-20 thru AS-160.
-A 120 gallon oxygen receiver weighing 275 lb (124.7 kg) is shipped separately with the AS-250 thru AS-450.

All models generate up to 95% pure oxygen with a dew point of -100 ºF (-73 ºC).

SCF (standard cubic foot) gas measured at 1 atmosphere and 70 ºF. Nm³ (normal cubic meter) gas measured at 1 atmosphere and 0 ºC.

Hoke Torches & Tips are for precision metal melting as well as soldering, brazing and welding.
